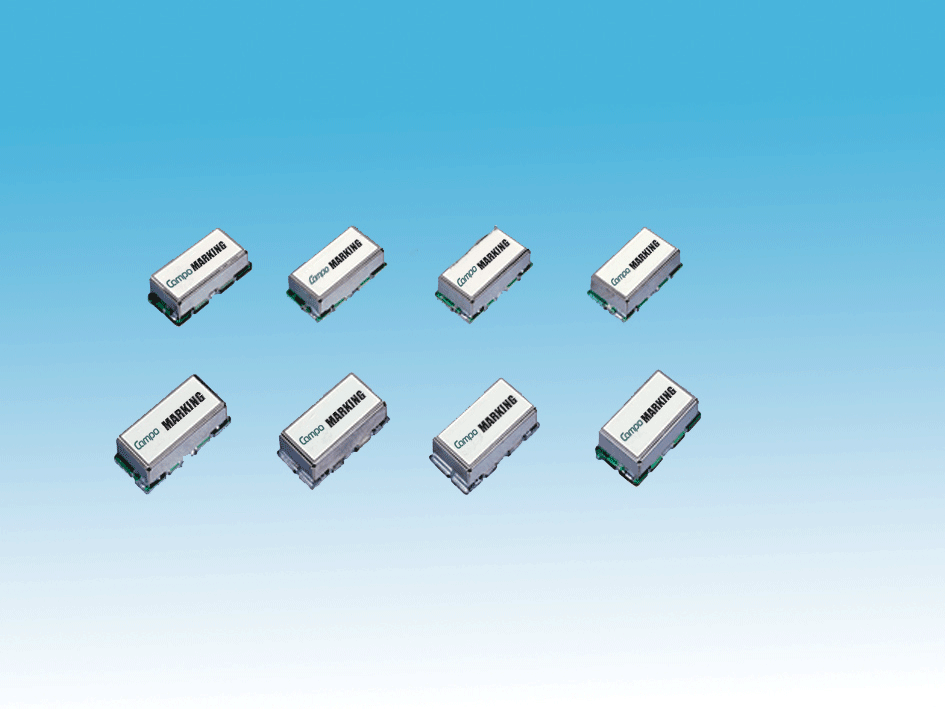

外形 Configuration

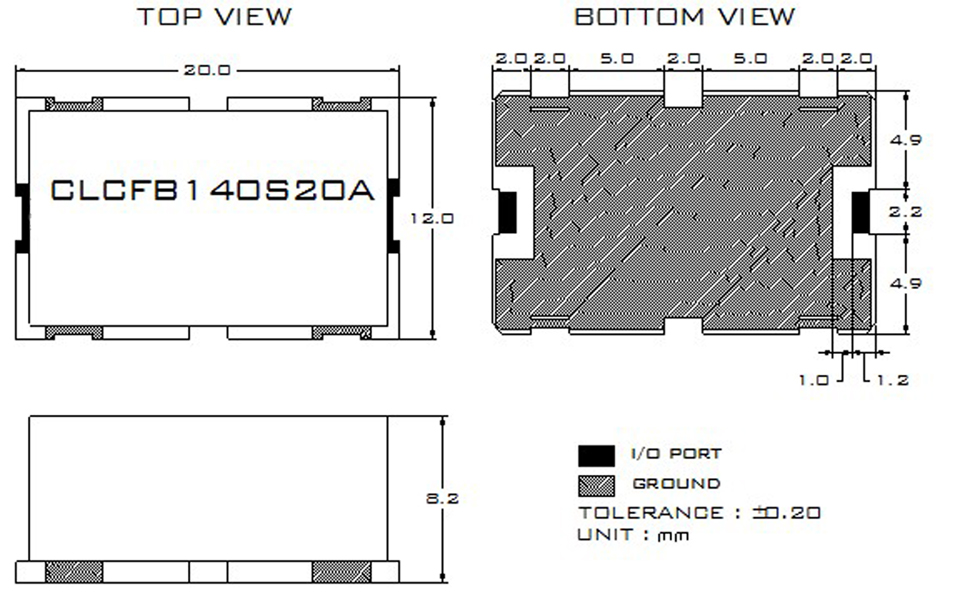

| 外形尺寸 Dimensions |

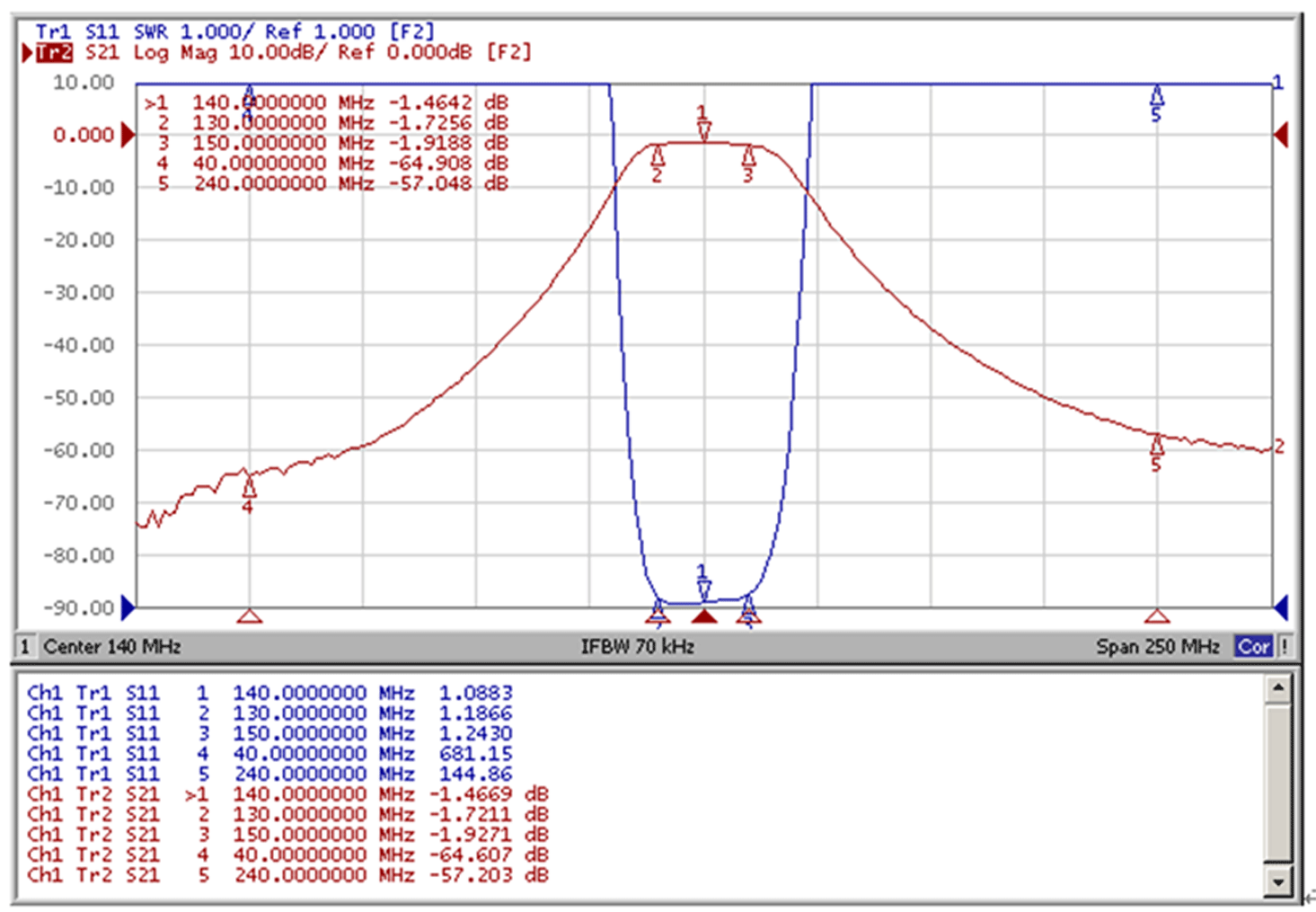

特性图 Typical Characteristic |
(1).jpg) |
(1).gif) |
主要参数 Principal Parameters
型号
Part No. |
截止频率
Cutoff Freq
fc(MHz)
|
带宽
Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
驻波比
VSWR
(Ratio)max |
带外抑制
Attenuation
(dB)min |
Zo
(Ω)
|
应用
Applications |
| CLCFB115TA |
114.99 |
1.24 |
7.0 |
1.5 |
23(fo-4.95) |
50 |
CDMA
|
| CLCFB115TB |
114.99 |
5.0 |
4.5 |
1.5 |
35(fo±20) |
50 |
| CLCFL65TA |
65.0 |
--- |
2.5 |
1.5 |
28(fc+10) |
50 |
| CLCFL4.95TA |
4.95 |
--- |
1.2 |
1.5 |
45(fc+4.95) |
50 |
| CLCFB70TA |
70.0 |
5.0 |
4.0 |
1.5 |
35(fo±22.5) |
50 |
PCS
|
| CLCFB70TB |
70.0 |
4.0 |
6.5 |
1.5 |
40(fo±10) |
50 |
| CLCFL5TB |
5.0 |
--- |
1.0 |
1.5 |
40(fc+2) |
50 |
| CLCFL10TA |
10.0 |
--- |
1.5 |
1.5 |
40(fc+8) |
50 |
| CLCFH200TA |
200.0 |
--- |
1.5 |
1.5 |
50(fc-20) |
50 |
| CLCFB38.4TB |
38.4 |
20.0 |
2.0 |
1.5 |
50(fo±55) |
50 |
WLL |
| CLCFB70TC |
70.0 |
20.0 |
2.0 |
1.5 |
50(fo±55) |
50 |
| CLCFB160TA |
160.0 |
5.0 |
7.0 |
1.5 |
40(fo±10) |
50 |
IMT-2000
|
| CLCFB190TA |
190.0 |
20.0 |
7.0 |
1.5 |
40(fo±10) |
50 |
| CLCFL04TC |
4.0 |
--- |
1.0 |
1.5 |
50(fc+8) |
50 |
| CLCFL1.89TA |
1.89 |
--- |
1.0 |
1.5 |
38(at 5) |
50 |
|
|
|
