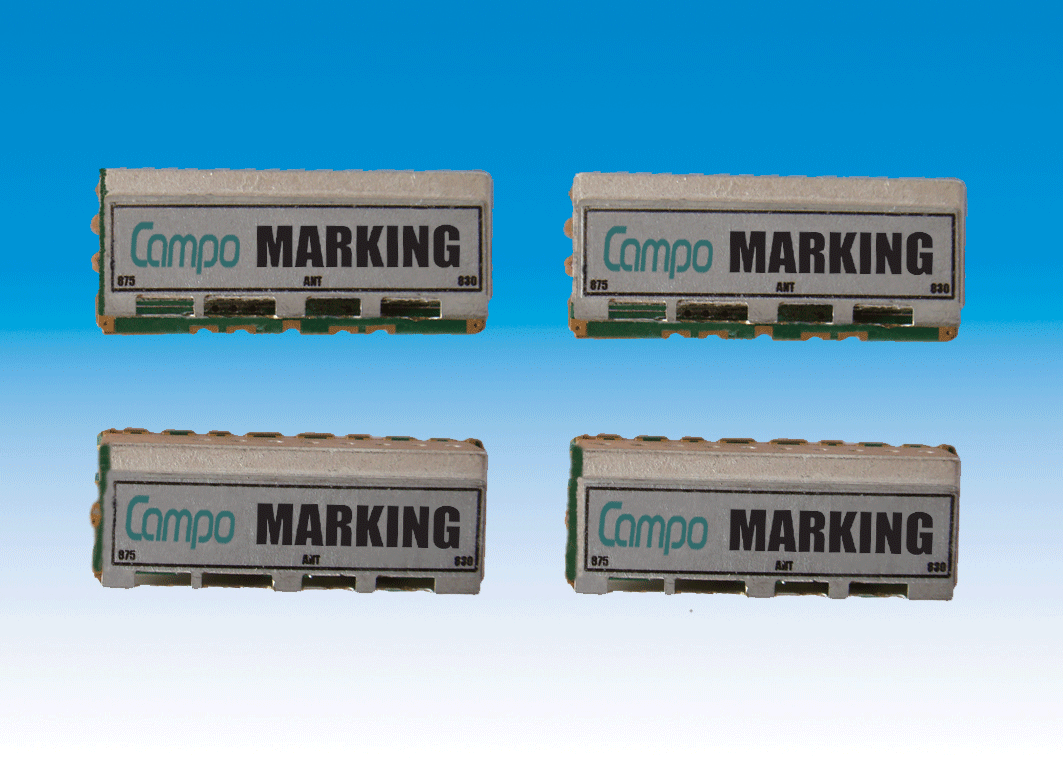

外形 Configuration

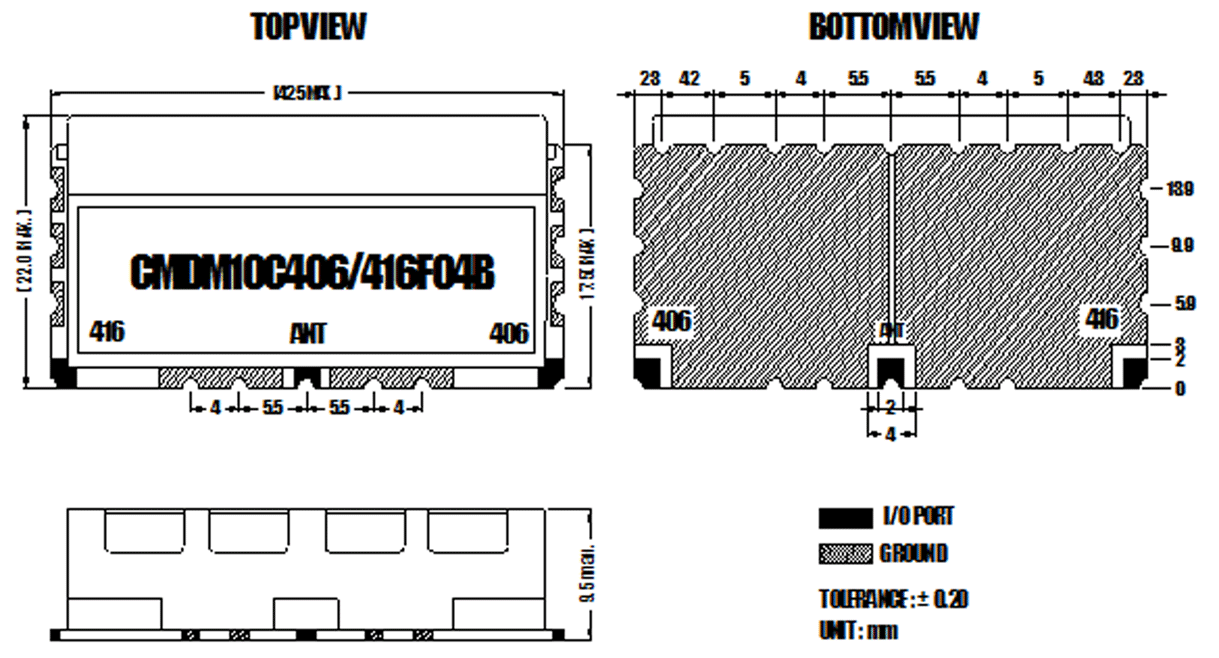

| 外形尺寸 Dimensions |

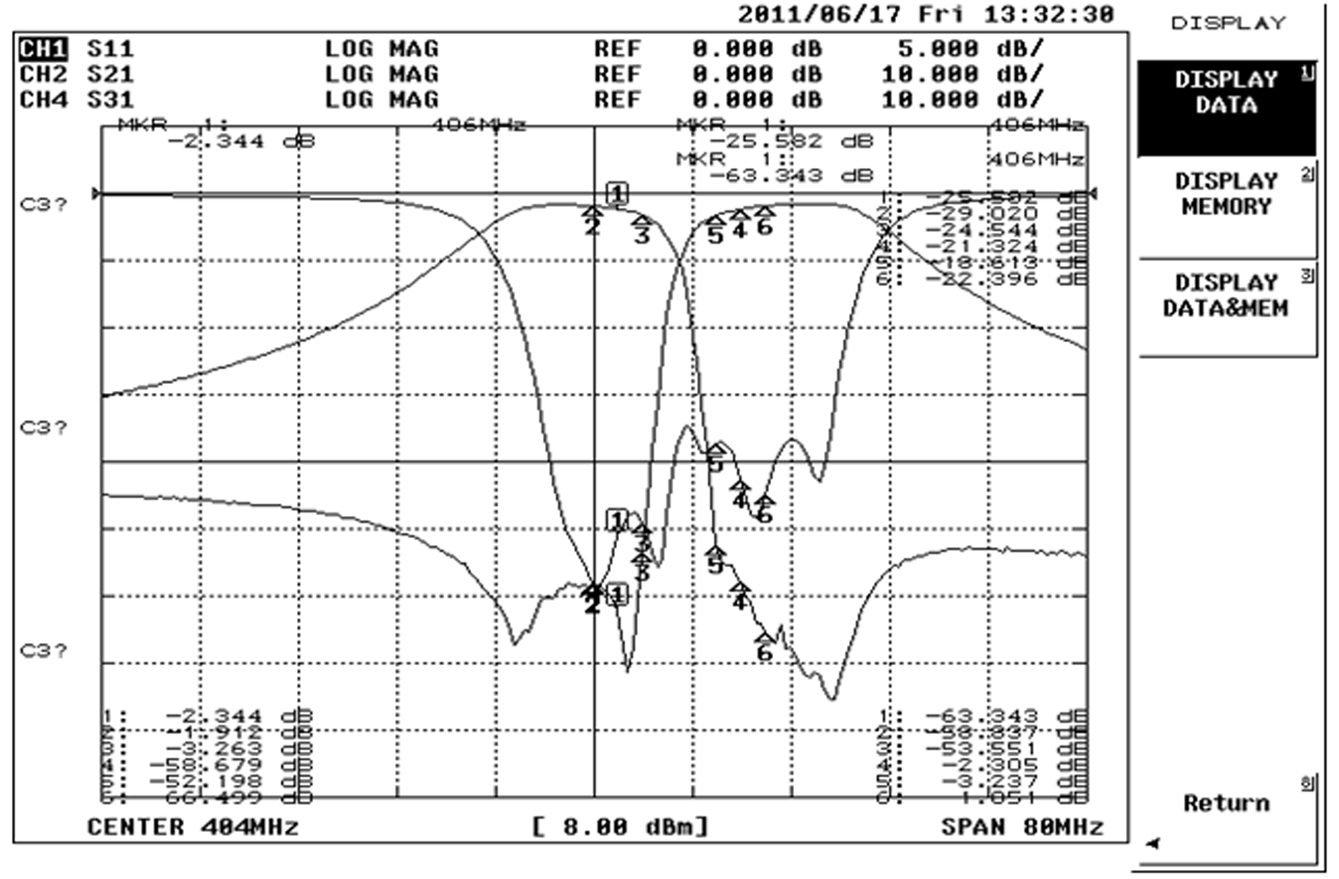

特性图 Typical Characteristics |
 |
 |
主要参数 Pricipal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz
|
带宽
Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
驻波比
VSWR
(Ratio)max |
带外抑制
Attenuation
(dB)min
(MHz) |
尺寸
Dimension
L×W×H
(mm) |
应用
Applications |
| CMD8C830/875F10A |
Tx |
830.0 |
10.0 |
2.5 |
1.7 |
45.0(fr±5) |
24×10×4.1 |
CHINA
CDMA
|
| Rx |
875.0 |
10.0 |
3.2 |
1.7 |
50.0(fr±5) |
| CMDM10C830/875F10A |
Tx |
830.0 |
10.0 |
2.4 |
1.5 |
45.0(fr±5) |
30×12×5.3 |
| Rx |
875.0 |
10.0 |
3.3 |
1.5 |
60.0(fr±5) |
| CMDM10C820/872F15A |
Tx |
827.5 |
15.0 |
2.2 |
1.5 |
10.0(fr±7.5) |
42×17.5×9.5 |
| Rx |
872.5 |
15.0 |
2.2 |
1.5 |
10.0(fr±7.5) |
| CMDM10C1947/2137F15A |
Tx |
1947.5 |
15.0 |
2.2 |
1.5 |
45.0(fr±7.5) |
42×13×9.5 |
| Rx |
2137.5 |
15.0 |
1.5 |
1.5 |
45.0(fr±7.5) |
| CMDM10C830/875F10B |
Tx |
830.0 |
10.0 |
1.8 |
1.5 |
60.0(fr±5) |
42×18×9.5 |
CDMA |
| Rx |
875.0 |
10.0 |
1.8 |
1.5 |
60.0(fr±5) |
| CMD10C902/947F25A |
Tx |
902.5 |
25.0 |
2.5 |
1.5 |
55.0(fr±12.5) |
42×18×9.5 |
GSM |
| Rx |
947.5 |
25.0 |
2.5 |
1.5 |
55.0(fr±12.5) |
| CMDP10C897/942F25A |
Tx |
897.5 |
25.0 |
2.3 |
1.5 |
55.0(fr±12.5) |
57×19×8.5 |
| Rx |
942.5 |
25.0 |
2.0 |
1.5 |
55.0(fr±12.5) |
| CMDP10C1950/2140F60A |
Tx |
1950.0 |
60.0 |
1.8 |
1.5 |
60.0(fr±30) |
43.5×13×9.5 |
WCDMA |
| Rx |
2140.0 |
60.0 |
1.8 |
1.5 |
60.0(fr±30) |
| CMD10C1747/1842F75A |
Tx |
1747.5 |
75.0 |
3.2 |
1.5 |
30.0(fr±37.5) |
29×7×5 |
DCS |
| Rx |
1842.5 |
75.0 |
3.5 |
1.5 |
30.0(fr±37.5) |
| CMDP10C1732/1827F45A |
Tx |
1732.0 |
45.0 |
2.3 |
1.5 |
50.0(fr±22.5) |
42×17.5×9.5 |
| Rx |
1827.0 |
45.0 |
2.3 |
1.5 |
50.0(fr±22.5) |
| CMDP10C3483/3583F33A |
Tx |
3483.5 |
33.0 |
2.5 |
1.5 |
50.0(fr±16.5) |
30×8.8×5 |
Wireless-LAN |
| Rx |
3583.5 |
33.0 |
2.5 |
1.5 |
50.0(fr±16.5) |
|
|
|
