分立式介质滤波器

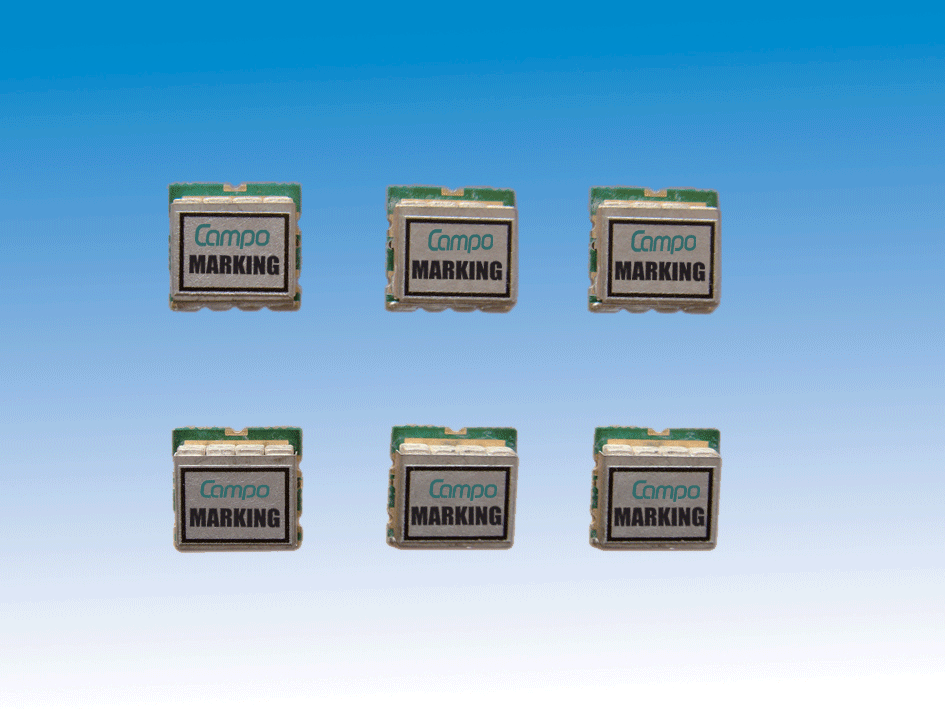

外观 Configuration

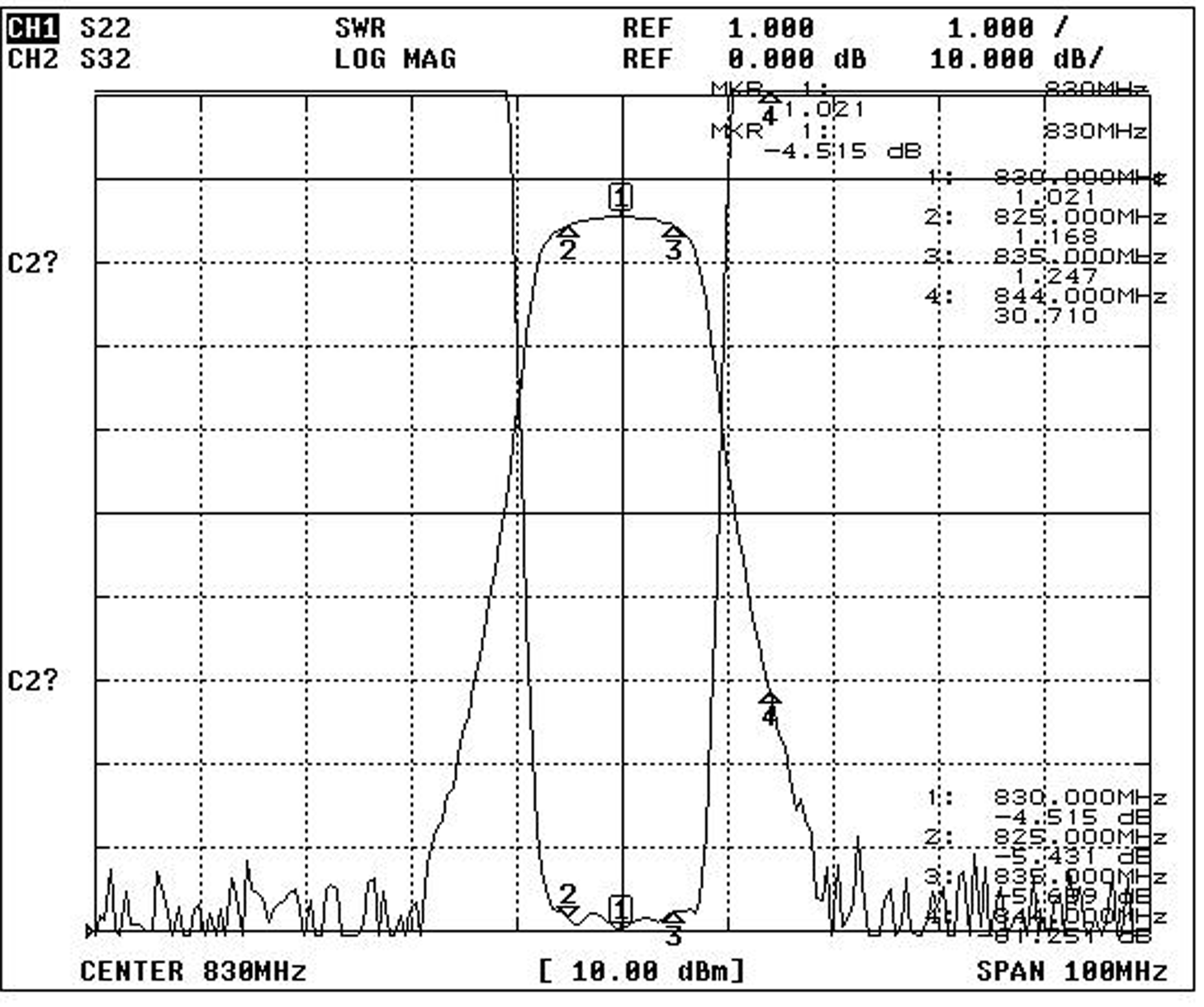

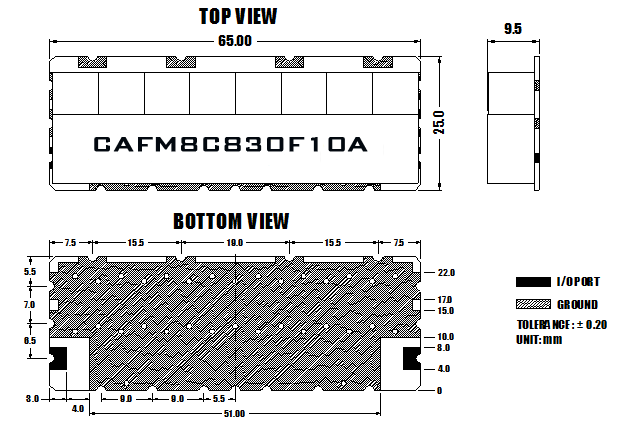

外形尺寸 Dimension	特性图 Typical Characteristic

主要参数 Principal Parameters

型号 Part No.	中心频率 Center Freq f0(MHz)	带宽 Band width f0(MHz)	插入损耗 Insertion Loss (dB)max	带内波动 Ripple in BW (dB)max	驻波比 VSWR (Ratio)max	带外抑制 Attenuation (dB)min (MHz)	尺寸 Dimension L×W×H (mm)	应用 Applications
CAFM3C830S10A	830.0	10.0	1.5	0.3	1.5	30.0(f0±50)	20.5×15×7.5	CDMA
CAFM3C902S25A	902.5	25.0	2.5	1.0	1.7	12.0(f0±32.5)	10×14×4.5	GSM
CAFM4C1950S60A	1950.0	60.0	3.0	1.0	1.5	35.0(f0+160)	13.5×12.5×4.5	IMT-2000
CAFM4C1747S75A	1747.5	75.0	3.0	1.3	1.8	50.0f0±200)	13×10×4.5	DCS
CAFM4C1880S60A	1880.0	60.0	2.5	1.0	1.8	20.0(f0±80)	13×10×4.5	US-PCS
CAFM4C836S25A	836.5	25.0	3.0	0.6	1.5	20.0(f0+32.5)	13×16×4.5	KOREA CDMA
CAFM4C881S25A	881.5	25.0	3.0	0.6	1.5	20.0(f0-32.5)	13×16×4.5	KOREA CDMA
CAFM4C875F10A	875.0	10.0	3.0	1.0	1.5	50.0(f0-45)	25×14×7.0	C-CDMA
CAFM3C813S10A	813.5	15.0	2.6	1.0	2.0	12.0(f0±27.5)	10×14×4.5	TRS
CAF3C830S10A	830.0	10.0	3.5	1.0	2.0	28.0(f0±40)	12×9×4.0	CDMA
CAFM5C902F25A	902.5.0	25.0	3.0	1.0	1.5	38.0(f0±32.5)	26×16×6.5	GSM
CAFM6C1747F75A	1747.5	75.0	3.5	2.0	1.5	20.0(f0±57.5)	38×16×8.5	DCS
CAFM4C409F07A	409.5	7.0	3.0	0.8	1.7	30.0(f0±13.5)	26×24×7.5	WLL
CAFM7C1880F60A	1880.0	60.0	3.5	1.5	1.5	50.0(f0±50)	44×16×8.0	US-PCS
CAFM6C830F10A	830.0	10.0	4.0	0.5	1.5	60.0(f0±50)	38×18.5×7.5	C-CDMA
CAFM5C1950F60A	1950.0	60.0	2.5	1.0	1.5	55.0(f0±160)	26×14×6.5	W-CDMA
CAFM5C1880F60A	1880.0	60.0	3.5	1.5	1.5	30.0(f0±50)	32×17×7.5	US-PCS
CAFM9C870F02A	870.0	2.0	15.0	2.0	1.5	70.0(f0±10)	56×20×7.5	NARROW
CAFM9C990F06A	990.0	6.0	12.0	2.0	1.5	50.0(f0±10)	56×20×7.5	BAND
CAFM5C1100F400A	1100.0	400.0	1.5	1.0	1.8	40.0(f0-400)	26×14×6.5	WIDE BAND
CAFM6C1237F575A	1237.5	575.0	2.0	0.5	1.5	10.0(f0-337.5)	38×18.5×7.5	WIDE BAND
