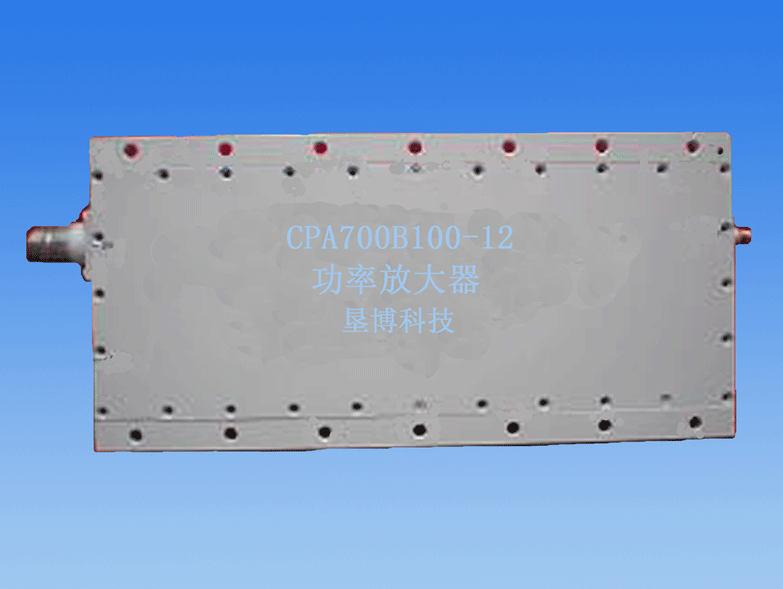

外观 Configuration
主要参数 Principal Parameters
| ELECTRICAL SPECIFICATIONS |
| ITEM |
Characteristics |
Unit |
| 1 |
频率范围 |
600 ~ 800 |
MHz |
| 2 |
增益 |
42.0 min |
dB |
| 3 |
频肩 |
30.0 min(典型值30&5W，40&1W) |
dBc |
| 4 |
带内平坦度 |
±0.75 max (典型值±0.4 ) |
dB |
| 5 |
噪声系数 |
12.0 max |
dB |
| 6 |
1dB 压缩点功率 |
20.0 |
W |
| 7 |
输入输出接口 |
SMA |
|
| 8 |
带ALC控制 |
10.0 min |
dB |
| 9 |
电源电压 |
12.0 |
V |
| 10 |
工作电流 |
2.5 ~ 5.0 |
A |
| 11 |
体积 |
90×50×13.5 |
mm |
| 12 |
功率检测 |
设置有功率检测输出端子 |
|
| 13 |
电流检测 |
设置有电流检测输出端子可供选择 |
|
|
|
|
