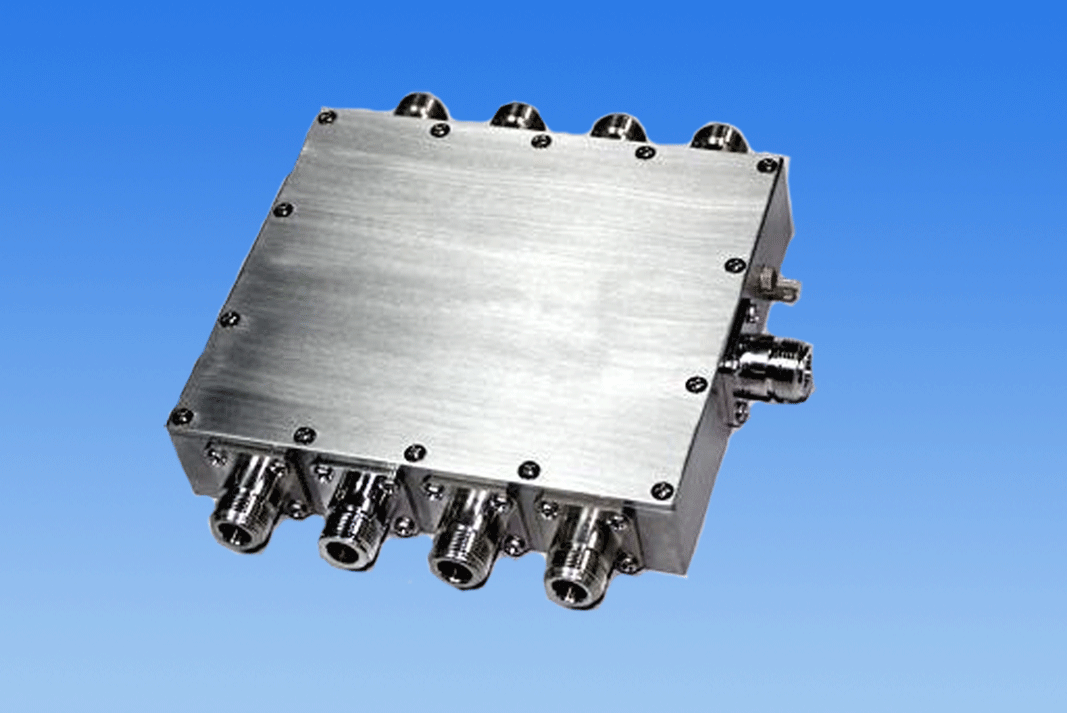

外观 Configuration
技术参数
| 序号 NO. |
项目 ITEM |
指标 SPEC |
| 1 |
Frequency Range |
1GHz ~12GHz |
| 2 |
Insertion Loss |
11.0 dB max |
| 3 |
VSWR |
2.0 max |
| 4 |
Attenuation |
18.0 dB min |
| 5 |
Zo |
50 Ω |
| 6 |
Power |
30 W |
| 7 |
Operation Temperature Range |
-55℃ ~+85℃ |
| 8 |
Connect Style |
SMA-K/50Ω |
| 9 |
Relative Humidity |
5% ~ 95% |
| 10 |
Size |
130×65×10 mm |
|
|
|
