外观 Configuration

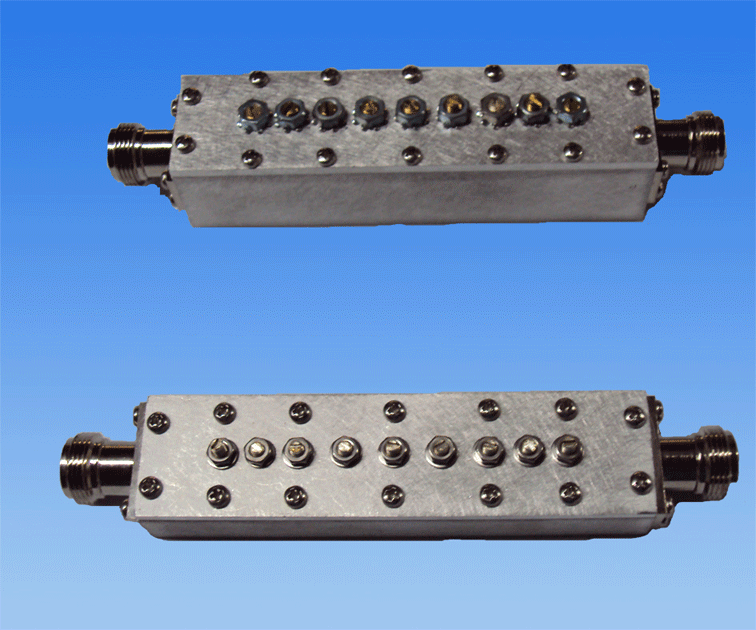

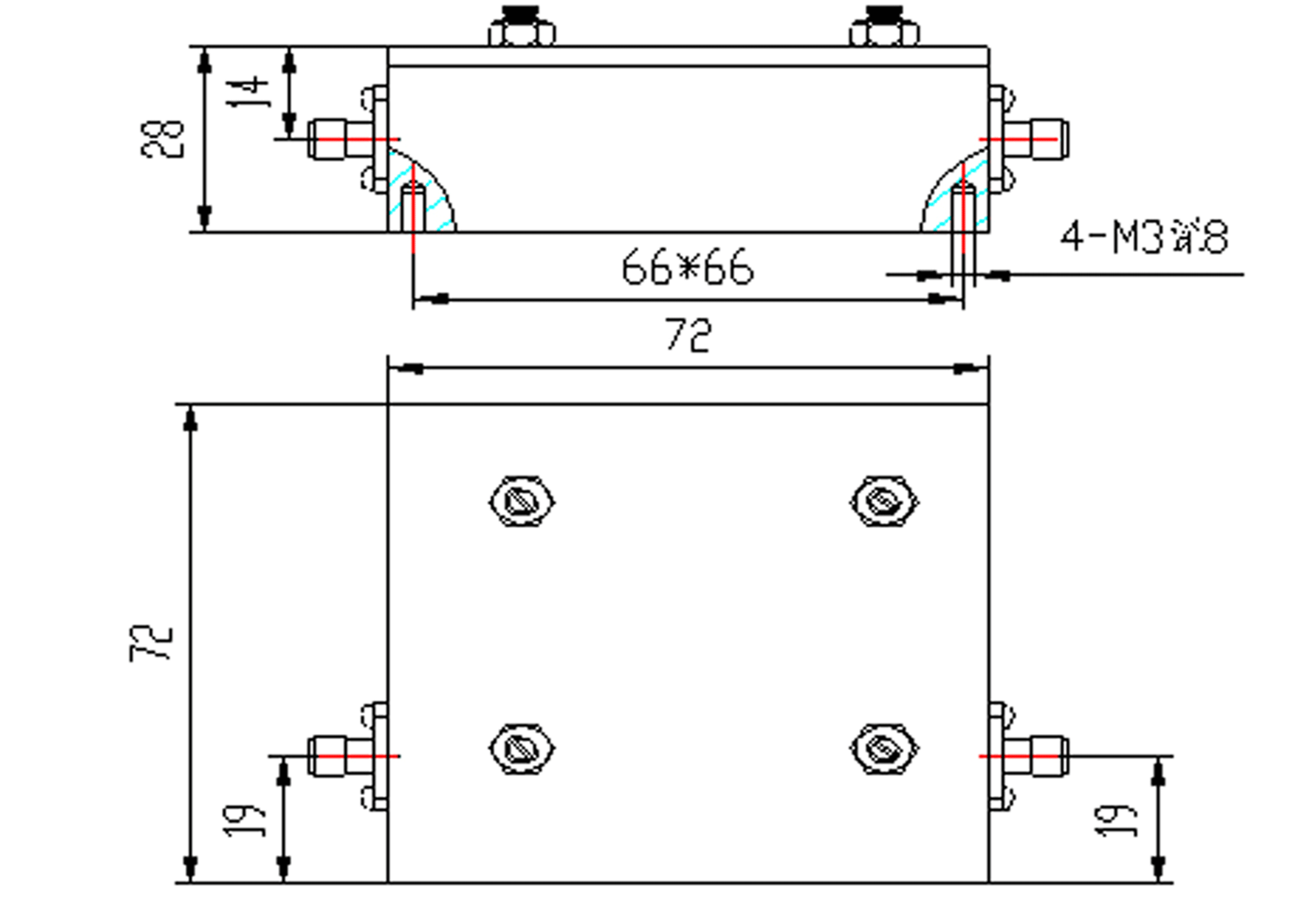

| 外形尺寸 Dimensions |

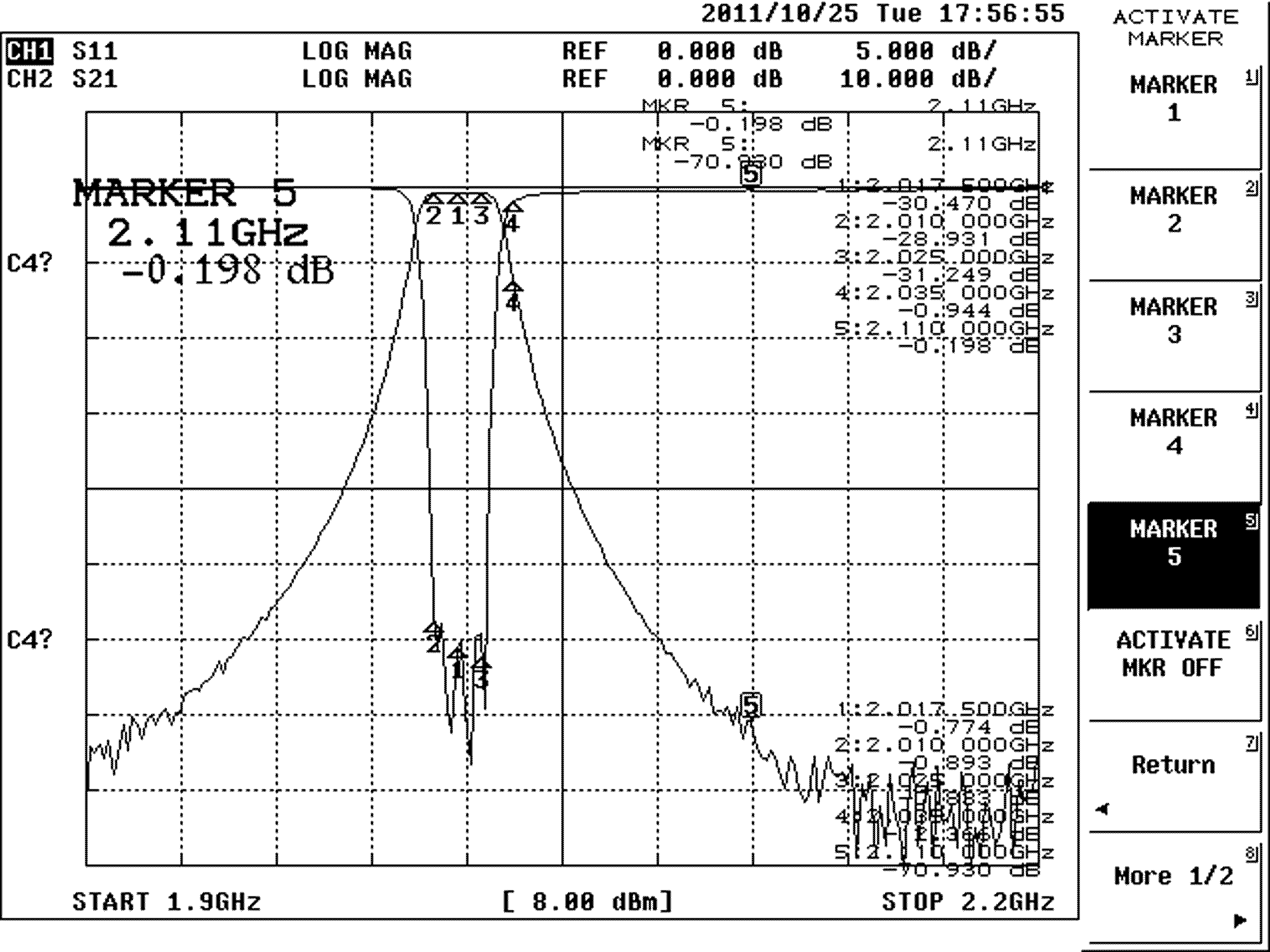

特性图 Typical Characteristics |
.gif) |
.gif) |
主要参数 Principal Parameters
|
形式
Type
|
工作频率
Operating Freq
(GHz)
|
BW/FO |
驻波比
VSWR
(Ratio)max |
功率容量
Power Capacity
(W)
|
阻抗
Zo
(Ω)
|
级数
Series
|
工作温度
Operating
Temperature
(℃)
|
耐冲击
Shock
Resistance
(g)
|
| 梳状 Comb Shape |
0.5 ~ 8.0 |
2~20% |
1.5 |
5 ~ 500 |
50.0 |
2 ~ 12 |
-55 ~+85 |
20.0 |
| 交指 Cross Fingers |
0.6 ~ 20.0 |
6 ~ 60% |
1.8 |
5 ~ 500 |
50.0 |
2 ~ 8 |
-55 ~+85 |
10.0 |
| 同轴 Coaxial |
0.6 ~ 6.0 |
06 ~ 4% |
1.7 |
15 ~ 500 |
50.0 |
2 ~ 8 |
-55 ~+85 |
20.0 |
|
型号
（Part Number)
|
中心频率
(Center Frequency)
(MHz)
|
带宽
（Bandwidth)
(MHz)
|
插入损耗
Insertion Loss
(dB)
|
带内波动
（Ripple in BW)
(dB)
|
驻波比
VSWR In BW
Ratio
|
带外抑制
Attenuation
dB
|
温度范围
Operation Temperation Range
℃
|
阻抗
In/Out Impendance
|
尺寸
Size
mm
|
| CCF730F24A |
730.0 |
24.0 |
0.7 max |
1.0 max |
1.2 max |
20.0 dB min @f0-18 MHz |
-40 ~ +85 |
50 Ω |
161×102×60 |
| 20.0 dB min @f0+25 MHz |
| CCF902F25A |
902.5 |
25.0 |
2.0 max |
1.0 max |
1.5 max |
30.0 dB min@870~885 MHz |
-20 ~ +65 |
50 Ω |
76×72×43 |
| CCF1090F15A |
1090.0 |
15.0 |
1.2 max |
1.2 max |
1.5 max |
45.0 dB min @f0-60MHz |
-40 ~ 100 |
50 Ω |
54×20×30 |
| 45.0 dB min @f0+60MHz |
| 二三四次谐波抑制80dB min |
| CCF1090F15B |
1090.0 |
15.0 |
1.1 max |
1.1 max |
1.5 max |
45.0 dB min @f0-60MHz |
-40 ~ 100 |
50 Ω |
64×20×30 |
| 45.0 dB min @f0+60MHz |
| 二三四次谐波抑制80dB min |
| CCF1542F34A |
1542.0 |
34.0 |
1.2 max |
0.8 max |
1.5 max |
85.0 dB min@DC~1000 MHz |
-20 ~ +55 |
50 Ω |
102×62×27 |
| 55.0 dB min@1000 ~ 1400 MHz |
| 50.0 dB min@1575 MHz |
| 40.0 dB min@1576 ~ 1700 MHz |
| 80.0 dB min@1700 MHz 及远 |
| CCF4350F40A |
4350.0 |
40.0 |
3.0 max |
1.5 max |
1.5 max |
|
-20 ~ +55 |
50 Ω |
97×40×20 |
| 80.0 dB min@4250 MHz |
| |
| CMHP3000/12750SF |
3000.0~12750.0 |
~ |
2.0 max |
1.0 max |
1.8 max |
|
-25 ~ +75 |
50 Ω |
35×30×10 |
| 40.0 dB min @ DC~ 2500 MHz |
| |
|
|
|
.gif)
