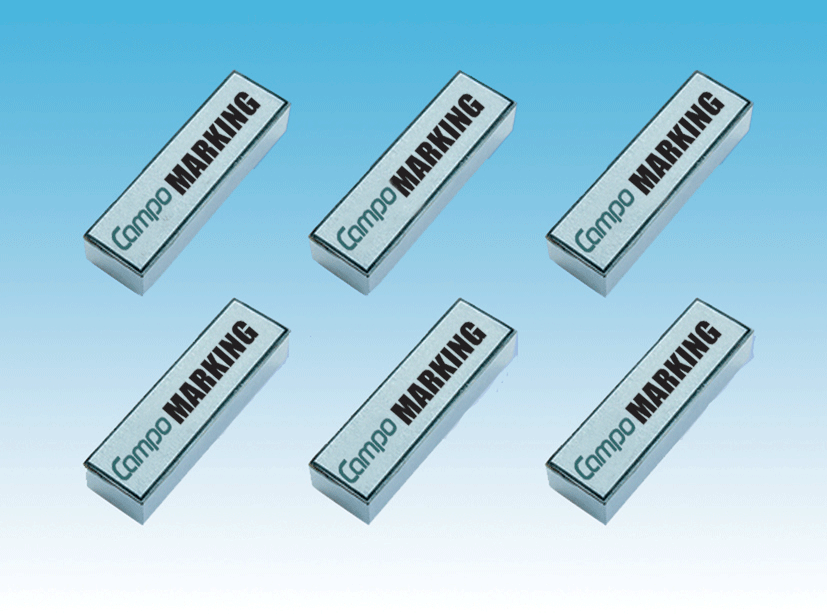

外观 Configuration

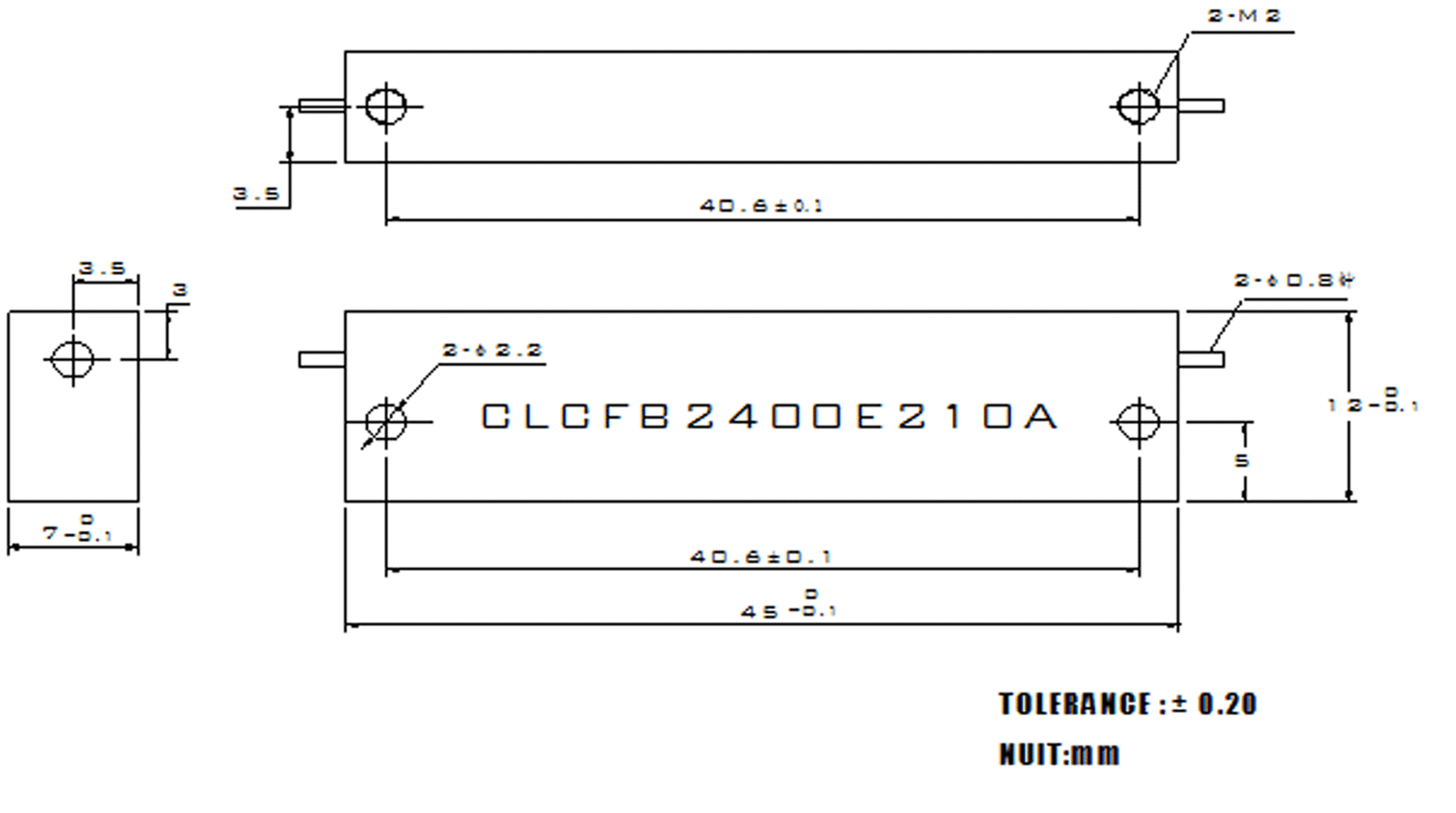

| 外形尺寸 Dimensions |

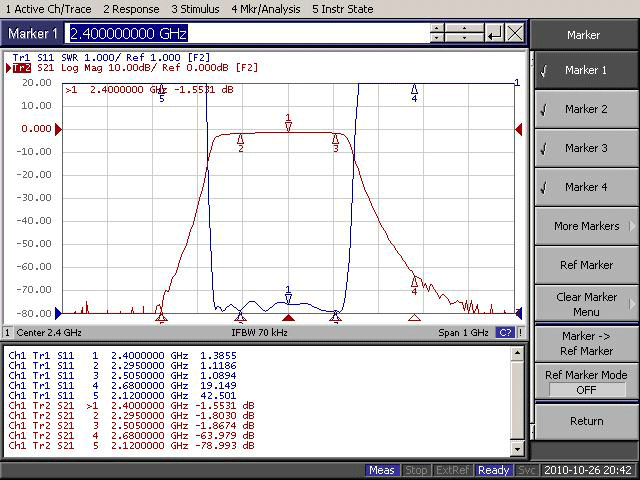

特性图 Typical Characteristics |
.gif) |
.gif) |
主要参数 Principal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz |
带宽
Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
带内波动
Ripple in BW
(dB)max |
驻波比
VSWR
(Ratio)max |
阻带衰减
Stop Band Att
(dB) min
|
| CLCFB40PA |
40.0 |
2.0 |
3.5 |
1.0 |
1.5 |
50(fo±20) |
| CLCFB140PA |
140.0 |
20.0 |
3.0 |
1.0 |
1.5 |
60(fo±50) |
| CLCFB231PA |
231.0 |
12.0 |
3.0 |
1.0 |
1.5 |
30(fo±50) |
| CLCFB480PA |
480.0 |
15.0 |
3.5 |
1.0 |
1.5 |
50(fo±60) |
| CLCFB1200PA |
1200.0 |
100.0 |
2.0 |
1.0 |
1.5 |
60(fo±150) |
| CLCFB2300PA |
2300.0 |
300.0 |
2.0 |
1.0 |
1.5 |
60(fo±400) |
|
|
|
