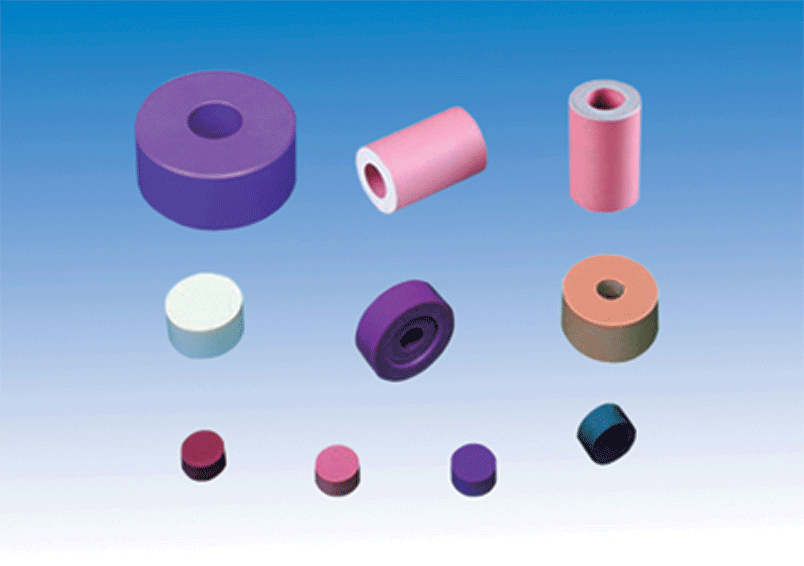

外观 Configuration

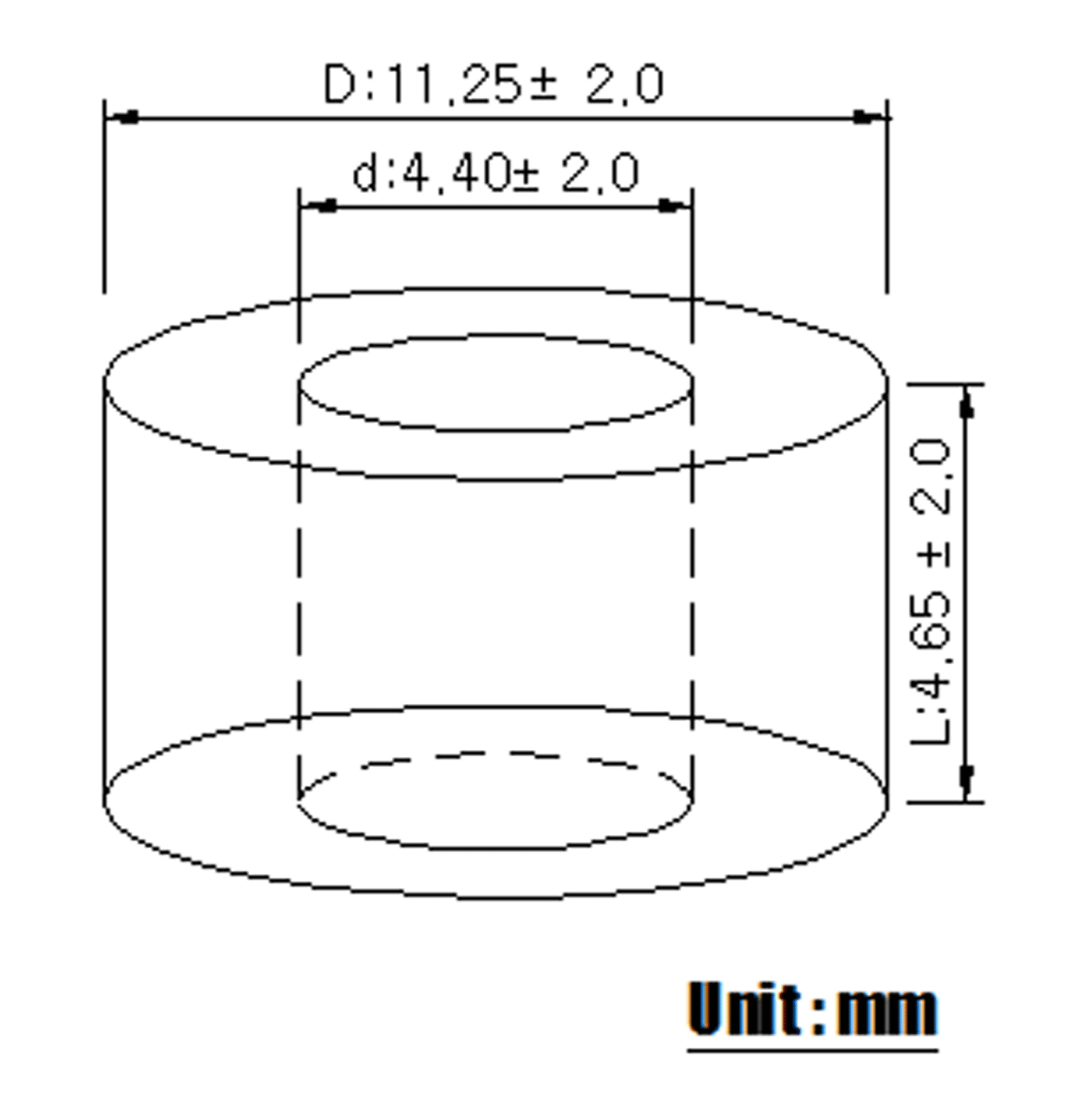

| 外形尺寸 Dimensions |

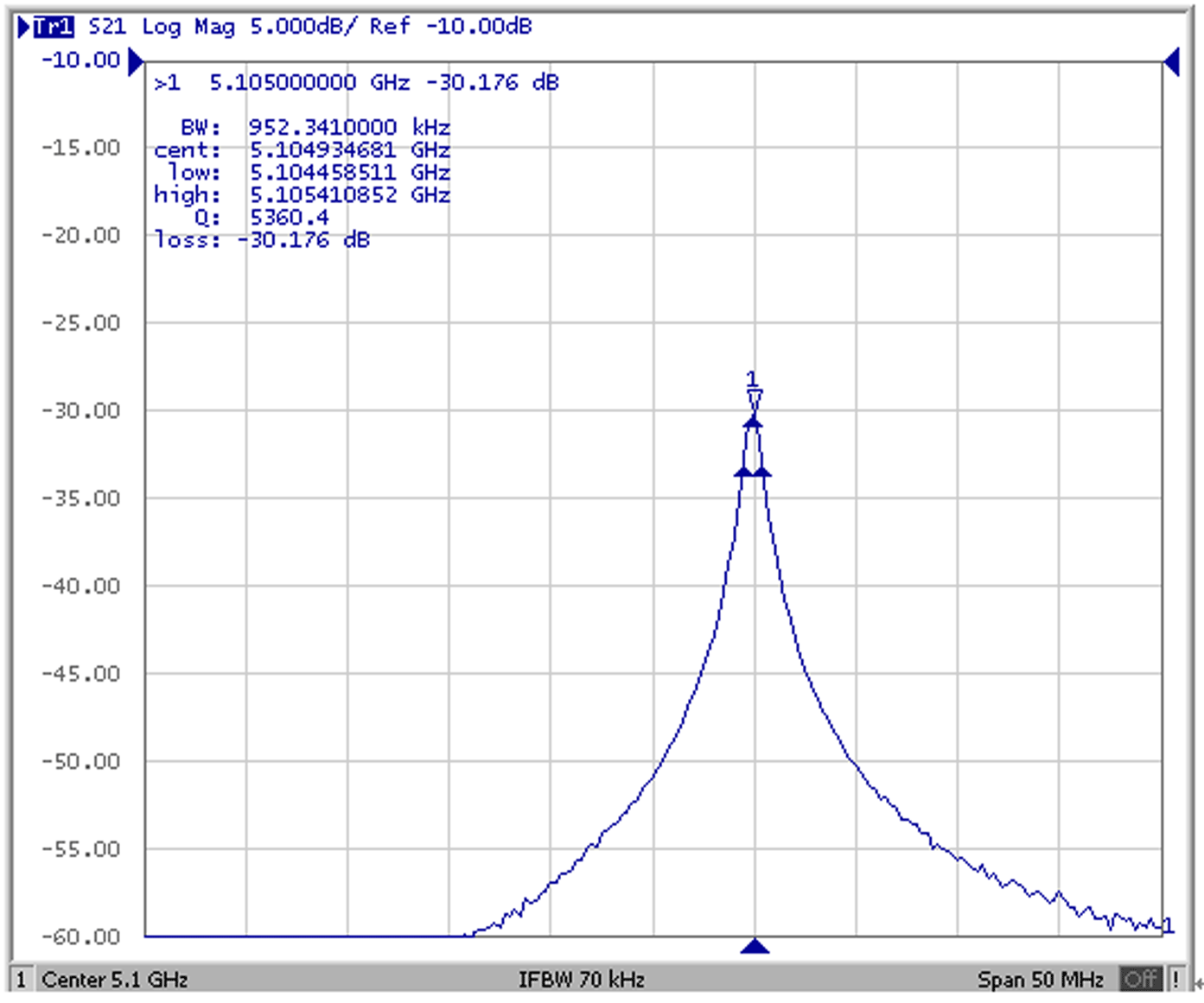

特性图 Typical Characteristics |
.gif) |
.gif) |
主要参数 Principal Parameters
|
材料系列
Material
Series
|
介电常数
Dielectric
Constant
|
品质因数Q
f0×Q(1/tanδ)
min
|
温度系数范围
Temperature
Coefficient
(ppm/℃)
|
绝缘阻抗
Insulation
Resistance
(Ω/cm)
|
热膨胀系数
Thermal
Expansion
Coeffcient
(ppm/℃)
|
密度
Density
(g/cm2)
|
频率范围
Application
Freqency Range
|
| CDR08 |
8~9 |
30000 |
-8 ~ 0 |
〉1014 |
8~9 |
4..0 |
参照频率图
Refer Frequency
Chat
|
| CDR20 |
20~21 |
60000 |
-3~+3
|
〉1014 |
8~9 |
3.8 |
| CDR30 |
29~30 |
150000 |
-6 ~+6 |
〉1014 |
12~13 |
7.4 |
| CDR37 |
36~38 |
40000 |
-3 ~+3 |
〉1014 |
6~7 |
5.0 |
| CDR45 |
44~46 |
50000 |
-6 ~+6 |
〉1014 |
9~10 |
4.7 |
| CDR90 |
89~91 |
7000 |
-6 ~+6 |
〉1014 |
8~9 |
5.7 |
|
|
|
